Description

• Place of Origin : Tianjin, China
• Brand Name : TXED
• Model Number : Fast Cargo II
• Gears : 7 Speed
• Range per Power : 80km in average
• Frame Material : Aluminum Alloy
• Wheel Size : 20″
• Max Speed : 25km/h
• Voltage : 48V
• Power Supply : Lithium Battery
• Braking System : Hydraulic Disc Brake
• Torque : 30-50 Nm
• Charging Time : 5-6 hours
• Motor position : Rear Hub Motor
• Battery Position : Down Tube
• Battery Capacity : 2×10.4Ah, 2×10.4Ah
• Special Feature : Lightweight
• Driven Type : Electric
• motor : Brushless
• Motor Power : 250W
• Suspension Type : Front Suspension
• Power Source : Lithium Battery
• Gear Shifter Type : twist throttle
• Tire : 20×3.0inch, 20″x3.0″. black, KENDA,K1016
• Frame : 20″x3.0″x450mm, alloy frame, with integrated single layer rear rack
• Fork : Alloy fork, TIG welded
• Handlebar : Alloy handlebar and alloy adjustable stem, sand black
• Brake : F/R hydraulic dics brake, with electric brake levers
• Hub : front alloy hub, rear hub motor
• Rim : 20″x3.0″x13Gx36H, alloy single wall, without big hole
• Motor : Brushless 48V/250W rear hub motor
• Battery : 2x48V /10.4AH lithium battery, with 2A charger

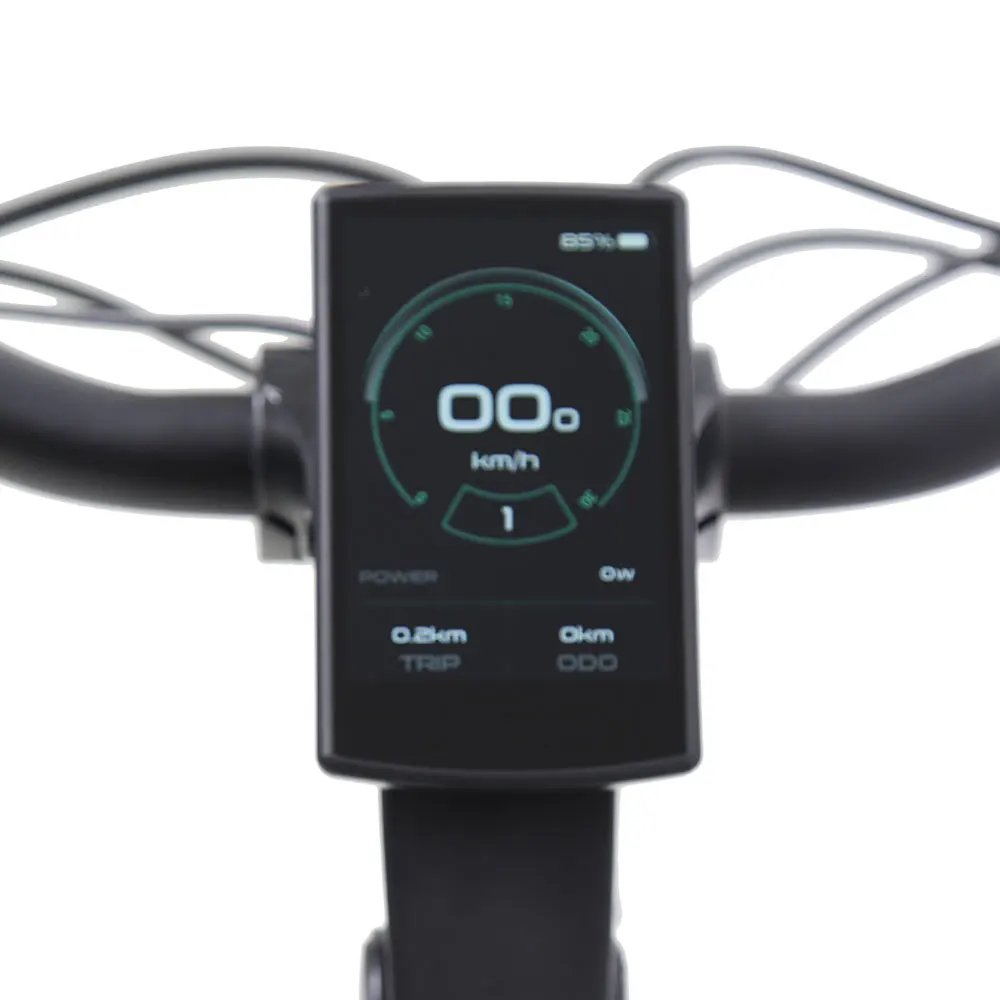

• Mode and Other Components : PAS/Twist Throttle, speed sensor, color LCD panel

Mechanical Equipment
Frame	20″x3.0″x450mm, alloy frame, with integrated single layer rear rack, TIG welded
Fork	Alloy fork, TIG welded
Handlebar	Alloy handlebar and alloy adjustable stem, sand black
Brake	F/R hydraulic dics brake,TEKTRO,HD-E3520F/R,with electric brake levers
Hub	front alloy hub, rear hub motor
Rim	20″x3.0″x13Gx36H, alloy single wall, without big hole
Tire	20″x3.0″. black, KENDA,K1016
Weight	28.5kg
Electric System
Motor	Brushless 48V/250W rear hub motor
Battery	2x48V /10.4AH lithium battery, with 2A charger
Mode and Other Components	PAS/Twist Throttle, speed sensor, color LCD panel
Max Speed	25km/h
Distance per Charge	80km in average

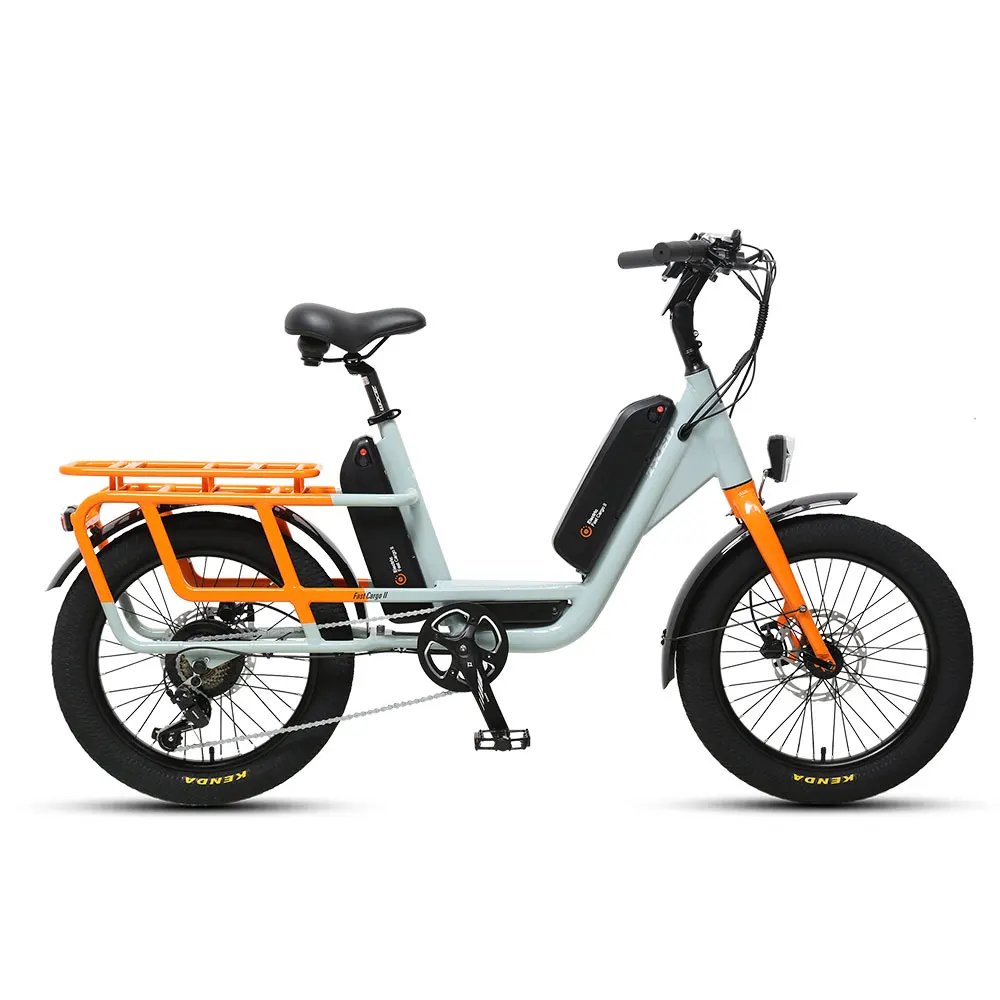

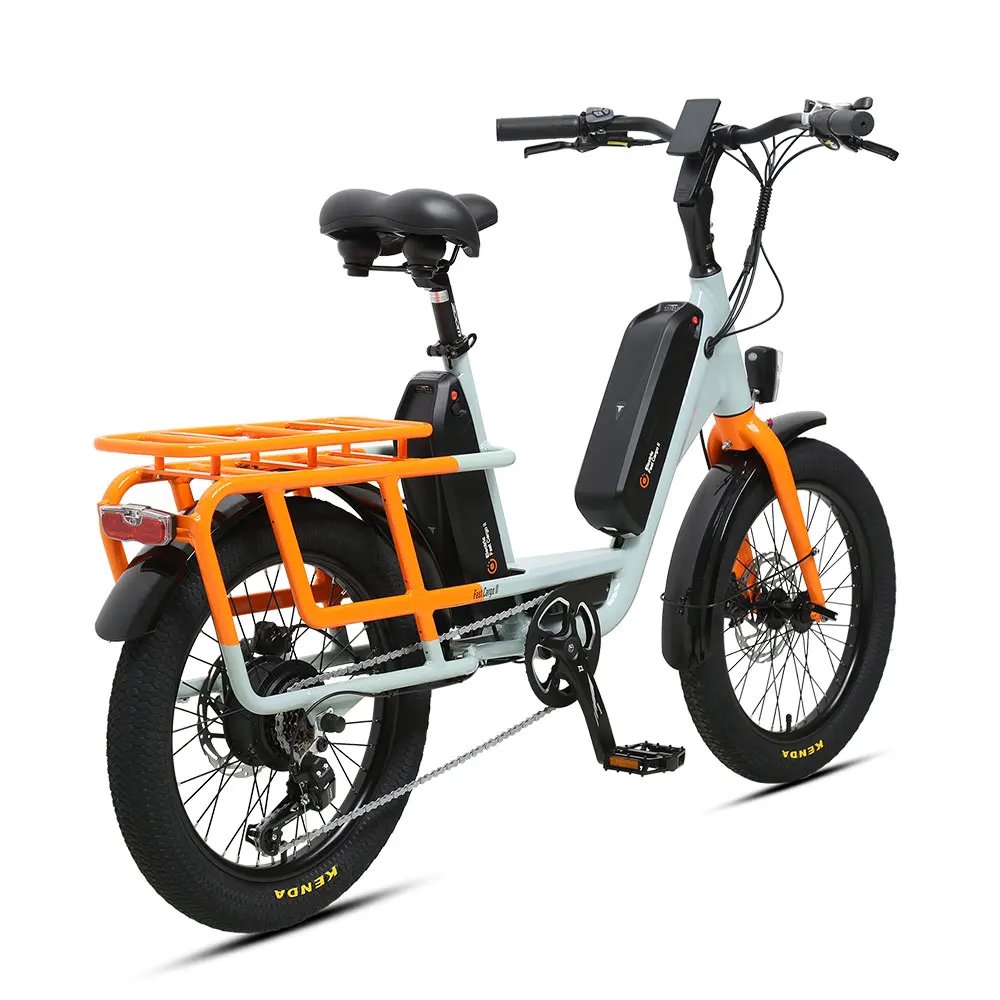

This is a premium family cargo bike, equipped with a high-capacity 48V/20Ah battery that seamlessly integrates with the frame. Its design is minimalist yet highly functional.

With a remarkable range of up to 80 kilometers, it effectively meets everyday family needs, serving as an excellent alternative to cars for short-distance transportation, thereby saving on household expenses while promoting eco-friendly and healthy travel.

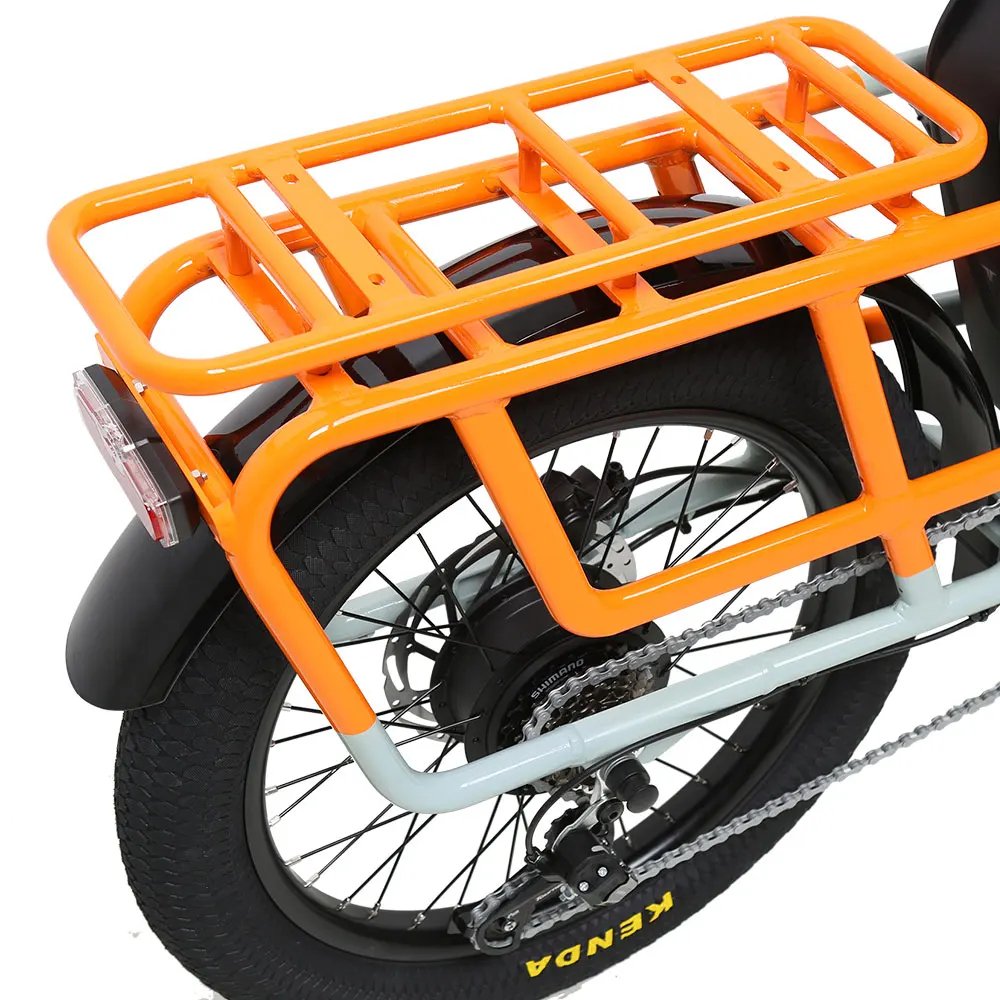

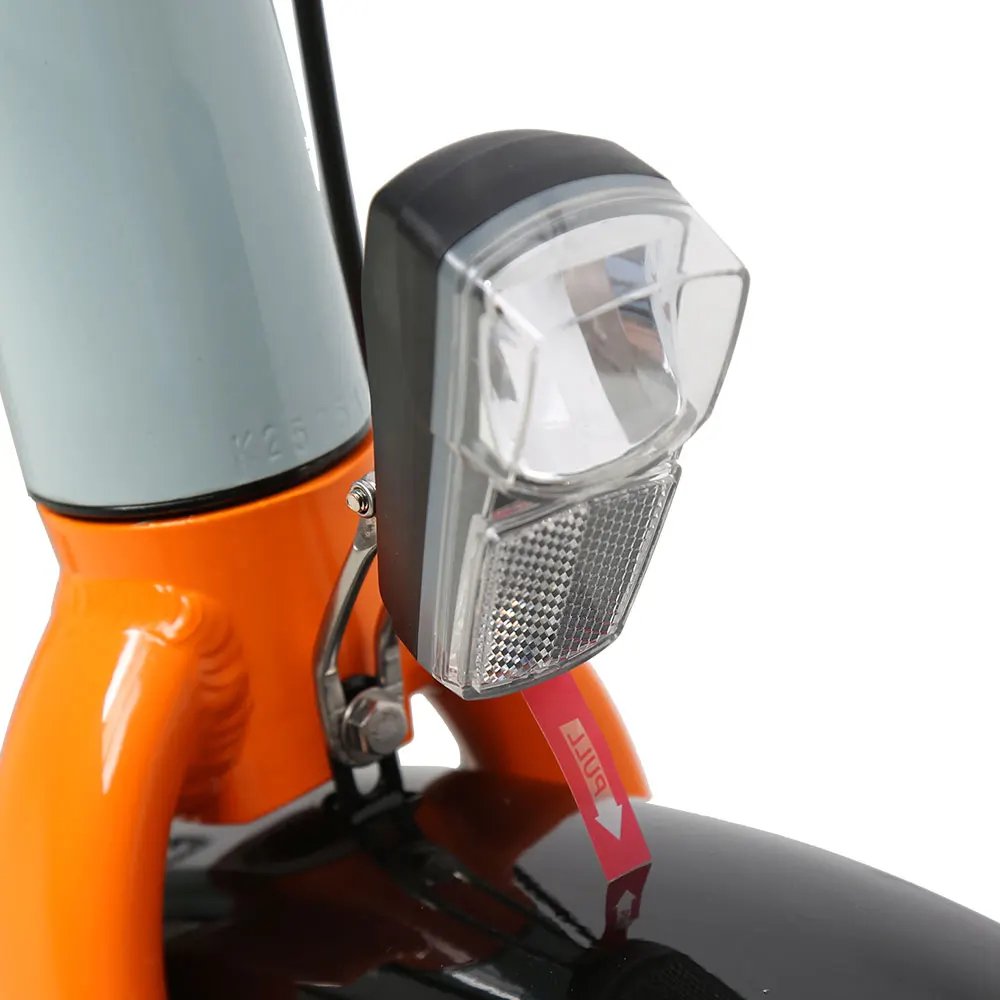

We have installed a child seat cushion on the rear rack, complete with safety rails to ensure the security of young passengers. Additionally, the wheel guards are designed to prevent any risk of injury to children during rides. Furthermore, our innovative foldable footrest design allows for a reduction in the bike’s width when not in use, enhancing maneuverability. Equipped with front and rear turn signals, this family cargo bike significantly boosts riding safety. It excels in both performance and safety, making it an ideal choice for family outings.
