Description
- Place of Origin : Tianjin, China
- Brand Name : TXED
- Model Number : Fast Cargo I
- Gears : 7 Speed
- Range per Power : 31 – 60 km
- Frame Material : Aluminum Alloy
- Wheel Size : 24″
- Max Speed : 30-50Km/h
- Voltage : 48V
- Power Supply : Lithium Battery
- Braking System : Disc Brake
- Torque : 60-70 Nm
- Charging Time : 1~3 hours
- Motor position : Rear Hub Motor
- Battery Position : At frame
- Battery Capacity : 15Ah, 15AH
- Special Feature : Basket
- Driven Type : Electric
- motor : Brushless
- Motor Power : 250W, 500W, 750W
- Tire : 24″x2.125, black
- Product name : Cargo E-bike
- Frame : 24″x2.125 TIG welded, integrated with frame
- Handlebar & Stem : alloy handlebar and adjustable stem, Holland style, black
- Saddle : vinyl top cover, integrated with soft PU, with handle
- Seat Post : Dia30.4x300mm black
- Rim : 24″x13Gx36H, alloy double wall, black
- Gear Set : SHIMANO TOURNEY 7-speed
- Mode and Other Components : speed sensor center LCD handlebar, power status speed and distance
- Weight : 35kg including double batteries 2x48V/15Ah
- Motor : 48V 250W/500W/750W
Product Description
Specifications
|
Mechanical Equipment
|
||||
|
Frame
|

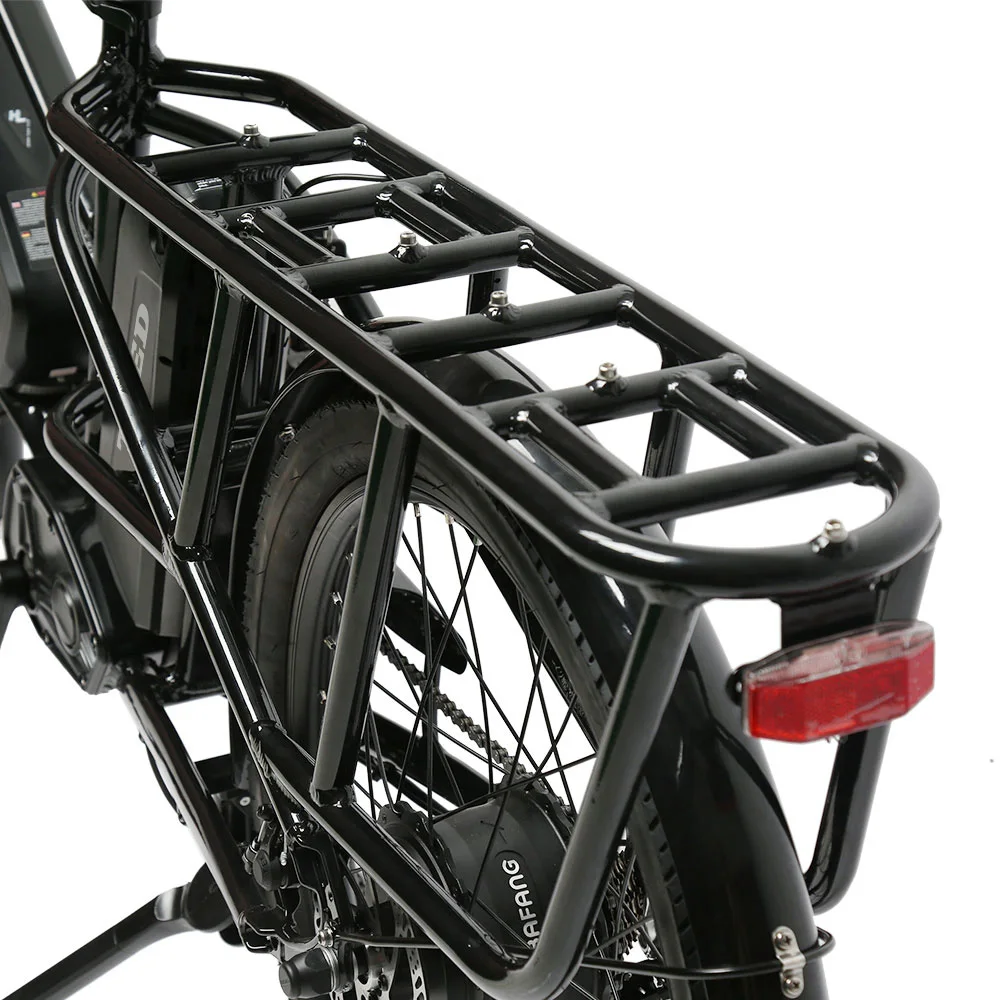

24″x2.125, frame height: 470mm, alloy, TIG welded, rear long tail carrier integrated with frame
|
|||
|
Fork
|
24″x2.125, hiten rigid fork
|
|||
|
Handlebar & Stem
|
alloy handlebar and adjustable stem, Holland style, black
|
|||
|
Brake
|
F/R：alloy mechanical disc brakes
|
|||
|
Crank Set
|
alloy cranks, steel chainring 3/32″x42Tx152mm, black
|
|||
|
Saddle
|
vinyl top cover, integrated with soft PU, with handle
|
|||
|
Seat Post
|
alloy Dia30.4x300mm, black
|
|||
|
Hub
|
front alloy hub 3/8″x13Gx36H, black; rear hub motor, black
|
|||
|
Rim
|
24″x13Gx36H, alloy double wall, black
|
|||
|
Tire
|
24″x2.125, black
|
|||
|
Gear Set
|
SHIMANO TOURNEY 7-speed
|
|||
|
Electric System
|
||||
|
Motor
|
brushless availabe of 48V/250W, 500W, 750W
|
|||
|
Battery
|

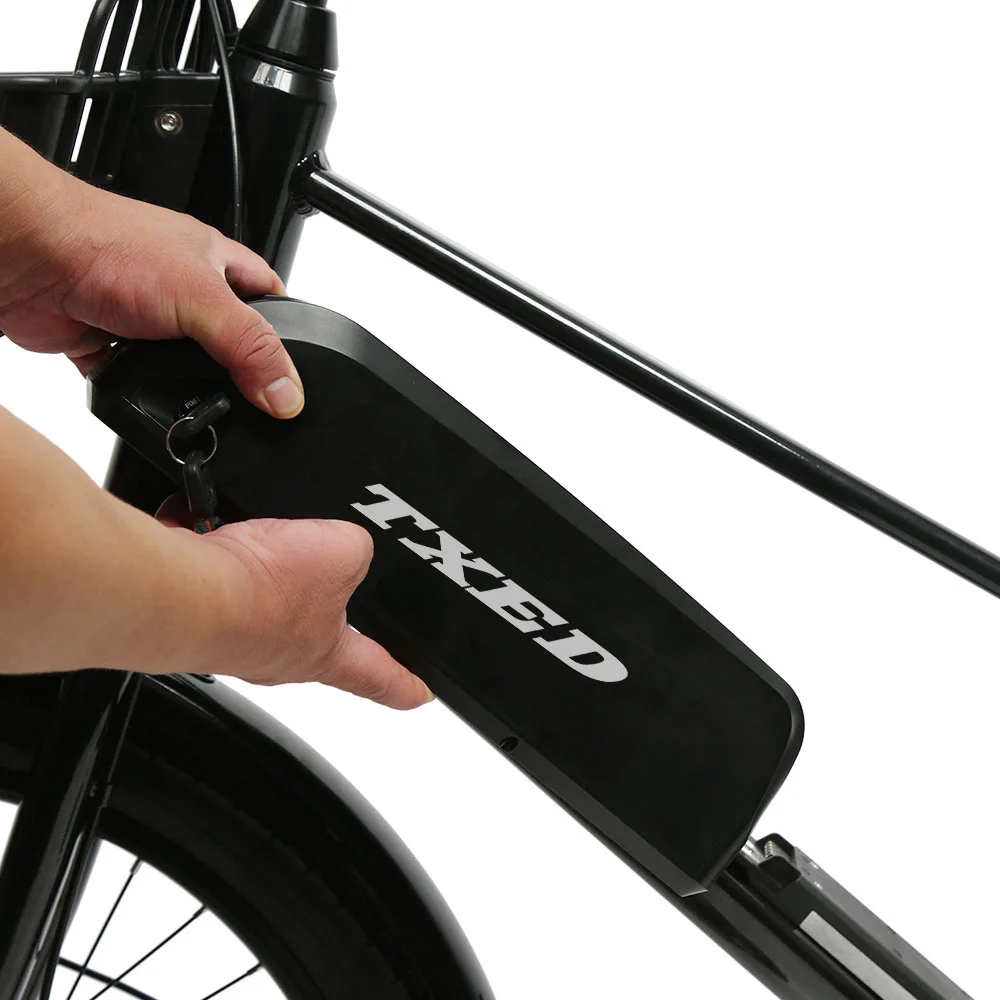

double batteries equipped at frame, 2x48V/15Ah Lithium batteries
|
|||
|
Weight
|
35kg including double batteries 2x48V/15Ah
|
|||
|
Option
|
to load a cargo over 100kg / side bag / double-bag / baby seat / double baby seat
|
