Description
- Place of Origin : Tianjin, China
- Brand Name : TXED
- Model Number : Amsterdam Fiets M belt
- Gears : inner 3-speed
- Range per Power : 31 – 60 km
- Frame Material : Steel
- Wheel Size : 28″
- Max Speed : ≤25km/h
- Voltage : 36V
- Power Supply : Lithium Battery
- Braking System : Disc Brake
- Torque : 50-60 Nm
- Charging Time : 1~3 hours
- Motor position : Rear Hub Motor
- Battery Position : Down Tube
- Battery Capacity : 13AH, 13AH
- Smart Type : Electronic
- Special Feature : dual disc brake
- Driven Type : pedal-assist
- motor : Brushless
- Motor Power : 250W
- Battery Type : Lithium Ion
- Power Source : Lithium Battery
- Display Type : LCD
- Frame: : 28″x2.0, alloy
- Fork: : alloy
- Handlebar: : alloy Holland style handlebar
- Brake Set: : disc brakes
- Wheels: : 28″x2.0
- Crank Set: : 3/32″x38Tx170mm
- F/R Hub: : front alloy hub, rear hub motor
- Saddle: : Vinyl cover, super soft, brown
- Gear Set: : inner 3-speed gears integrated with rear hub motor
- Weight: : 30.0kg
Product Description
Unique Selling PointsUSP:
1. Belt drive system makes the riding more clean, silent, and easy to do the maintenence, as the chaincover is open type
2. ”Calorie data” can be showing from the display, you know how much Calorie is burned from your body when you ridng this bike.
3. In this model, we have built in “FIND MY” Tag. And then, you can use your Iphone ” Find My” procedure Binding with your bike and position and find your bikes when it is missing. As an owner of Iphone, it is free to use this function.

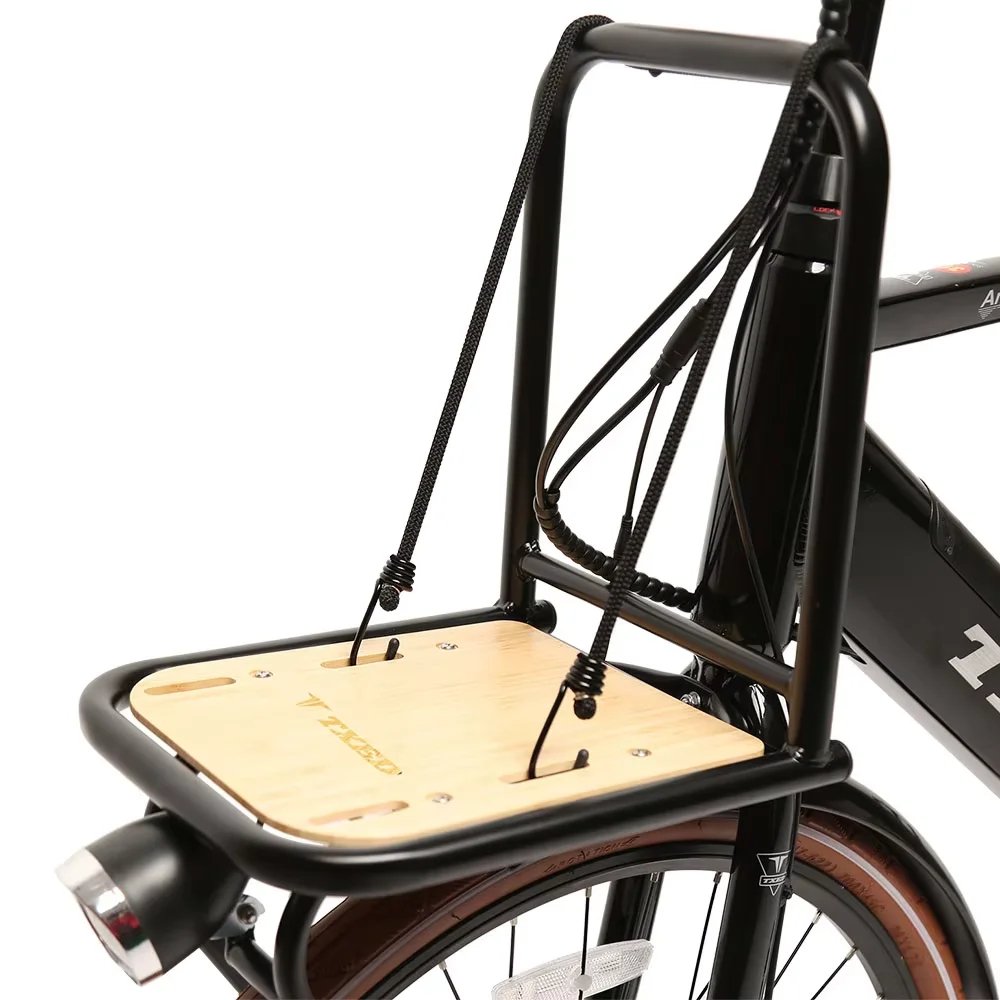

4. On this bike, we have applied our latest developed front carrier. This carrier is equipped with a strap installed on wooden
plateform, and the strap hook can be placed in different positions to bind a cargo in different sizes.
Specifications
|
Mechanical Equipment
|
||||
|
Frame
|
28″x2.0, alloy, TIG welded, with hidden battery
|
|||
|
Fork
|
alloy, TIG welded, with disc brake mount
|
|||
|
Handlebar
|
alloy Holland style handlebar, alloy head stem, black
|
|||
|
Brake Set
|
front and rear disc brakes, TEKTRO, with electric brake levers
|
|||
|
Gear Set
|
3/32″x38Tx170mm, steel chainring, alloy cranks, PROWHEEL
|
|||
|
Saddle
|
Vinyl cover, super soft, brown
|
|||
|
Wheels
|
28″x2.0, black, WANDA tires&tubes
|
|||
|
F/R Hub
|
front alloy hub, rear hub motor
|
|||
|
Gear Set
|
inner 3-speed gears integrated with rear hub motor
|
|||
|
Electric System
|
||||
|
Motor
|

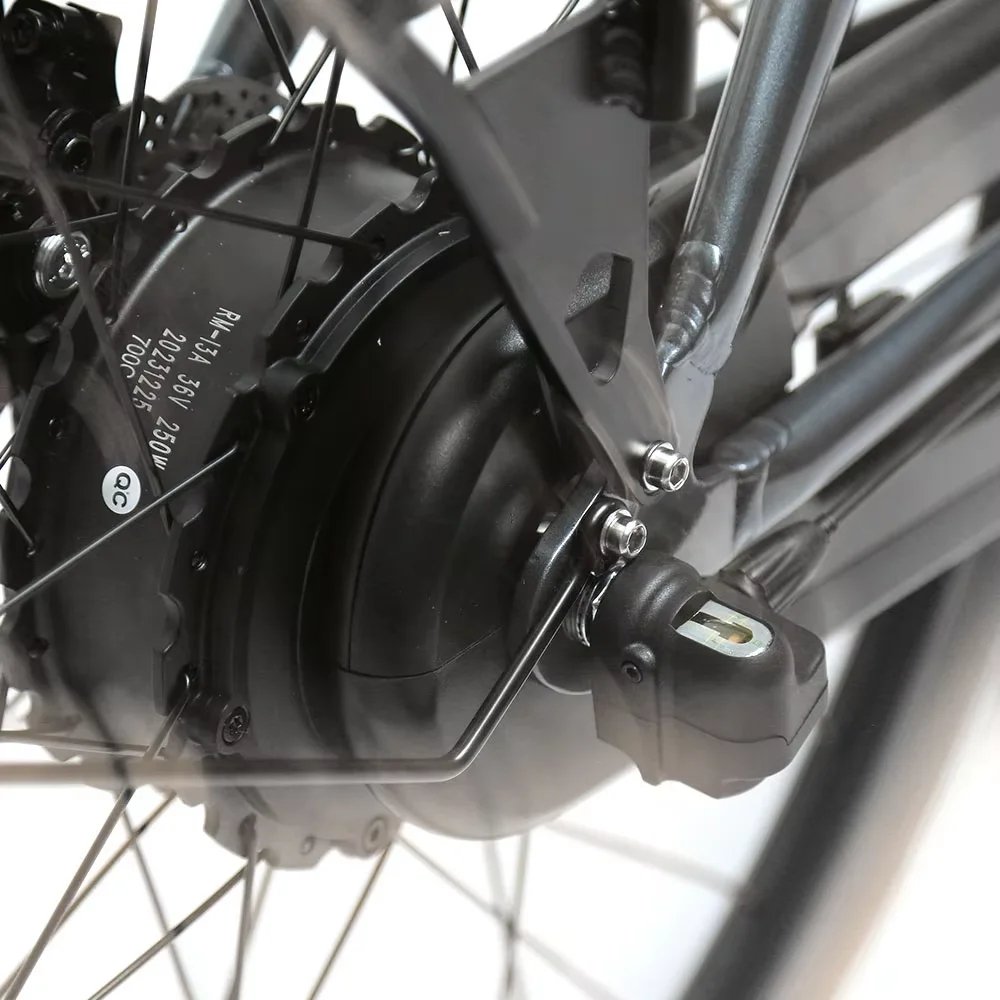

brushless 36V/250W rear hub motor integrated with 3 inner gears
|
|||
|
Battery
|
36V/13Ah Lithium battery
|
|||
|
Mode and Other Components
|

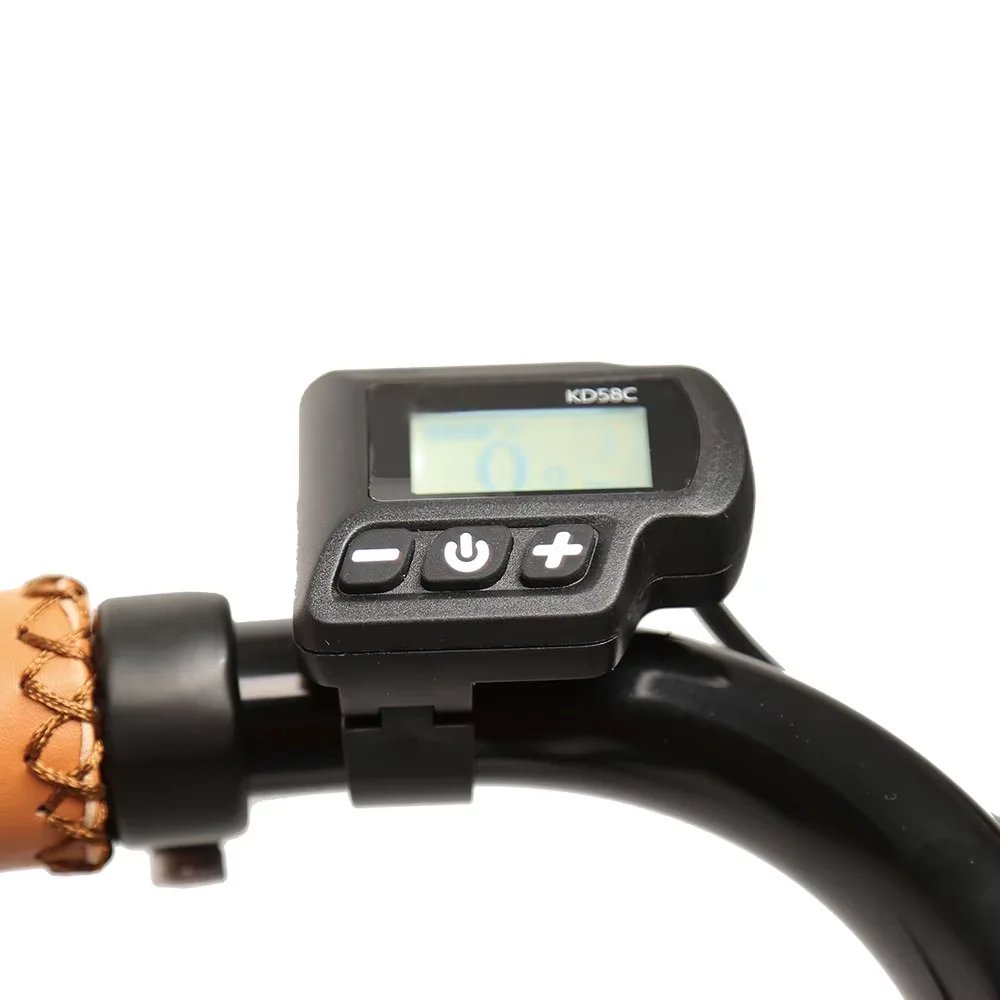

PAS only, mini color LCD display, showing power status, 5 assistance levels, speed and distancem, calories
|
|||
|
Distance per Charge
|
60km in average
|
|
FAQ
|
||||
|
Q: What’s your bike quality situation?
|
||||
|
A: It is the fact what we manufactured are all in middle/high quality classes even in European market, closing to the A-brand in the world. All the electric bicycles we manufactured is basically according to present EU/US Standard. It varies according to standard and regulations in the destination sales countries.
|
||||
|
Q: Do you accept OEM/ODM customer’s orders?
|
||||
|
A: Yes, we can make the bicycle according to customer’s specification, color combination and even logo/design, as well as package request, provided if our MOQ for OEM term is accetable. For customers identified as senior, we can provide them with the quick service from 3D design to final products.
|
||||
|
Q: I want to order a sample to check the quality
|
||||
|
A: We welcome you to order samples to check our quality and actual manufacturing value. Usually, in our factory, it takes 3-4 weeks to get the sample bikes ready, after receipt of your full payment.You can also take sample bikes from our ready or future inventory in China and our EU/US warehouse. But many of our customers start with bulk order with us, which prove greatly successful and both time and fund have been greatly saved.
|
||||
|
Q: What is your minimum order quantity?
|
||||
|
A: Usually, for an OEM order direct from our China factory , we request for a normal order by 1X40ft HQ container to start. The models and colors can be mixed in this container. Usually, we request MOQ per model/color: 100pcs. We also keep some present and futures inventory, which is available in China and EU/US warehouse. For the stocks or futures inventory, there is no MOQ request.
|
||||
|
Q: How long is the delivery time for an order?
|
||||
|
A: In general, it takes about 60 days to get an order ready for an OEM order which meet our MOQ request. But this may require some additional or reduced time. It is depended on your actual quantity and the complexity of your order details. For example, if your order contains some details to be developed specifically for you, the delivery time may be longer; if your order is simple or avoid the peak ordering season, your delivery time may be shortened. If you order our existing stock, you can pick it up immediately after payment; if you order our future inventory, you may pick it up more quickly according to our production schedule.
|
